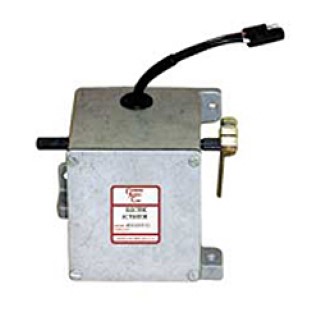

ADC225GS-12/24

12 or 24 VDC / Commercial Connector with Mating Harness / Lesser Rate Return Spring

The 225 Series electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail safe operation by forcing the actuator to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi voltage usage, wider rotation angles, and proven reliability. The actuator can operate directly from 12 and 24 volt battery supplies. The speed of operation of the actuator is typically faster than competitive units, thus it provides more stable and rapid response to transient conditions. Applications include fuel injection pumps, with or without mechanical governors, rotary type pumps, and medium sized gaseous fueled engines. The 25 degrees of rotation expands the application to a wider variety of engines.

หมวดหมู่:
เปรียบเทียบสินค้า

Features

Easy Installation

Universal Design

Internal Return Spring

Rapid Response to Transient

Multiple Mounting Positions

2.2 lb.ft. Torque

25° Rotation


SPECIFICATIONS

PERFORMANCE

Available Torque (w/o Return Spring)
2.2 ft-lb max (2.7 Nm)

Maximum Operating Shaft Travel
25° ±1° CW/CCW

POWER INPUT

Operating Voltage
12 or 24 VDC

Normal Operating Current
3.0 Amps @ 12 VDC
1.5 Amps @ 24 VDC

Maximum Current
Continuously Rated
8.0 Amps @ 12 VDC
4.0 Amps @ 24 VDC

ENVIRONMENT

Operating Temperature Range
-65°F to +200°F (-54°C to +95°C)

Relative Humidity
up to 100%

All Surface Finishes
Fungus Proof and Corrosion Resistant

PHYSICAL

Weight
8.25 lb (3.75 kg)

Mounting
Any Position, electrical connector at the top preferred

RELIABILITY

Vibration
Up to 20 G, 50 – 500 Hz

Testing
100% Tested
