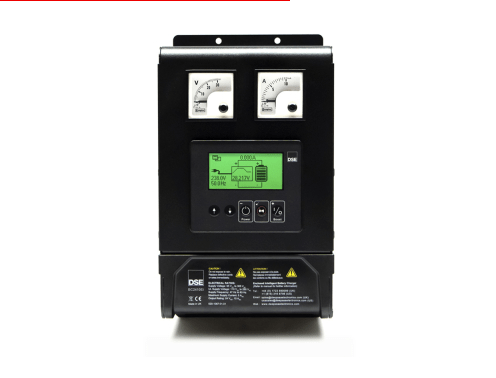

BC2410Ei

12/24 Volt 10 Amp Enclosed Intelligent Battery Charger

NFPA 110 (QWIR) COMPLIANT / UL LISTED

The DSEBC2410Ei is an enclosed intelligent battery charger designed to work with multiple battery types across a wide range of applications. The advanced technology has been developed to automatically detect system settings and charging profiles including cell voltage and boost voltage to provide high-levels of charging support.

Additional high-level features include external system integration via Modbus RS485, remote temperature compensation, short-circuit and reverse polarity protection, multi-stage charging regimes, configurable charging curves and battery life optimisation.

OVERALL SIZE
170 mm x 305 mm x 116 mm (6.7” x 12.0” x 4.6”)

WEIGHT
2.3kg

หมวดหมู่:
เปรียบเทียบสินค้า

Product Highlights

Intelligent two, three & four stage charging profiles.
Provides safe and complete charging and charge maintenance of various battery types.

Front panel control with multiple display variants.
Flexible local control and visual monitoring of battery charging status.

12 volt & 24 volt configurable.
Flexibility and cost effectiveness of one charger to suit different voltage types.

Adjustable current limit.
Output current can be adjusted to suit alternative battery sizes and prevent overcharging on custom curves.

Battery charger & power supply.
Versatile product for multiple application types.

Manual & automatic boost.
Provides a faster charging cycle and automatically maintains a full charge.

Digital microprocessor technology.
Provides accurate and reliable operation and safe charging and monitoring of various battery types.

Battery charging temperature compensation.
Delivers added protection.

Low output ripple/excellent line regulation.
Safe charging of both sealed and vented battery types.

Customisable charging curves.
Provides the flexibility to charge battery types not available in the standard curve library.

AC input under/over voltage.
Protects the charger and provides alarms in the event of an AC input failure.

Battery charger over voltage protection.
Provides a warning that the battery voltage is above that specified for the type of battery.

Battery charger over current protection.
Provides a warning that the battery is drawing a current above the configuration of the type of battery connected.

Battery under voltage alarm.
Provides warning in the event that the battery voltage is low and may not be charging.

Auto battery detection.
Provides a warning if the battery is not connected or has been disconnected.

Auto self-test function.
The battery charger self diagnoses at regular intervals, providing advance warning of any internal fault.

Output short circuit and inversion polarity with auto recovery.
Protects the charger in the event of a short circuit or crossed polarity with automatic charger on correction of the fault.

Auto power de-rating at high ambient temperatures.
Prevents damage to the battery and charger caused by overcharging in warm climates.

Optional battery temperature compensation using a PT1000 temperature sensor.
Direct battery temperature measurement, Increases battery performance to the maximum possible at given temperature as specified by the battery manufacturer.

Power save mode.
Helps to improve battery life and operating performance.

External system integration via MODBUS RTU using RS485.
Provides protocols for monitoring of the battery charging and charger status from a remote location.

DSE Configuration Suite PC Software.
Flexible configuration of the battery charger to suit battery parameters and installations.

External remote display option (DSE2541).
Remote display for monitoring of the battery charging and charger status from a remote location.

86% operating efficiency.
Reliability, low running costs and cool running.


Specification

AC SUPPLY

VOLTAGE RANGE
90 V to 305 V (L-N)

FREQUENCY RANGE
48 Hz to 64 Hz (L-N)



DC OUTPUT RATING

10 A DC at 12 & 24 V DC

RIPPLE AND NOISE
<1%

EFFICIENCY
>86%

REGULATIONLINE
<0.5%

LOAD
2%



TEMPERATURE SENSOR INPUT

PT1000



PROTECTIONS

Short Circuit
DC Over Voltage
DC Over Current
Reverse Polarity
Over Temperature
AC Under & Over Voltage
Battery Charger Failure



CHARGE FAILURE RELAY

3 A at 30 V DC volt-free relay

OPERATING TEMPERATURE RANGE

-30° C to +55° C
-22° F to +131° F



OPERATING TEMPERATURE RANGE
(DE-RATE TO OUTPUT)

-30° C to +80° C
-22° F to +176° F
