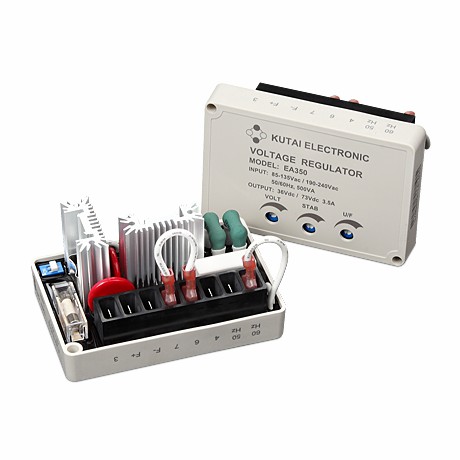

Features
Voltage regulation < +/-1%
Optional 120/240 Vac sensing input switch
50/60 Hz selectable
Under frequency protection
Built-in high breaking capacity fuse
EMI Suppression
Specifications
Sensing & Power Input
Voltage
120 (85 to 135) / 220 (190 to 240) Vac DIP switch selectable
Frequency
50/60 Hz jumper selectable
Output
Voltage
Max. 36 Vdc @ 120 Vac input
Max. 73 Vdc @ 240 Vac input
Current
Continuous 3.5A
Intermittent 7A for 10 seconds
Resistance
Min. 15 ohms
Max. 100 ohms
Voltage Regulation
< +/-1% (with 4% engine governing)
Build Up Voltage
Residual volts at AVR terminal > 5 Vac
EMI Suppression
Internal electromagnetic interference filtering
External Voltage Adjustment
+/-5% @ 1 kΩ 1 watt trimmer
+/-10% @ 2 kΩ 1 watt trimmer
Unit Power Dissipation
Max. 8 watts
Under Frequency Protection
(Factory Setting)
50 Hz system presets knee point at 45 to 51 Hz
60 Hz system presets knee point at 54 to 61 Hz
