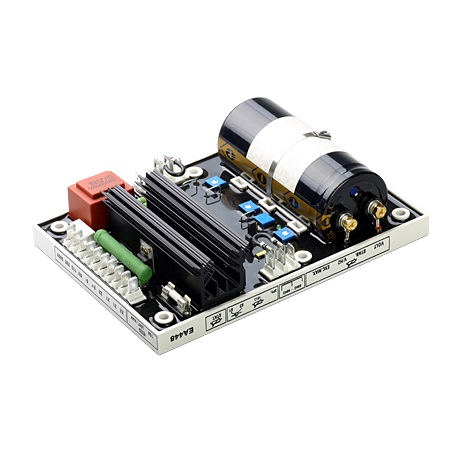

Features
Voltage regulation < +/-0.5%
Load acceptance module (LAM)
50/60 Hz selectable
Under frequency & Exc. max protection
Single phase or three phase voltage sensing optional
Soft start voltage ramping
Normal rapid response time (option)
Apply with KUTAI IVT-1260/IVT-2460 to exceeds normal generator motor starting capabilities
Specifications
Sensing Input
Terminal
0 – 110V = 95 – 140V
Terminal
0 – 220V = 170 – 260V
Terminal
0 – 380V = 340 – 520V
Frequency
50/60 Hz selectable
Power Input
Voltage
40 to 150 Vac 3 phase
Output Current
Max. 10A
Current Droop
Max. 7% @ P.F.=0.7
Voltage Regulation
< +/-0.5% (with 4% engine governing)
Build Up Voltage
Residual volts at AVR terminal > 5 Vac
Voltage Output
Max. 160 Vdc @ 120 Vac
External Voltage Adjustment
+/-10% @ 1 kΩ 1 watt trimmer
Auxiliary Winding
6 – 150 Vac (No load rms)
Response Time
0.3 to 1 second @ +/-20% voltage vibration
LAM Voltage Droop Rate
4.5 to 6.5V/Hz @ 220 Vac selectable
