Product Highlights
Connects to two DSE MSC links (Bus 1 & Bus 2).
Provides excellent system flexibility.
Automatic control of the DSE MSC link.
Provides control when the breaker is opened or closed for synchronising.

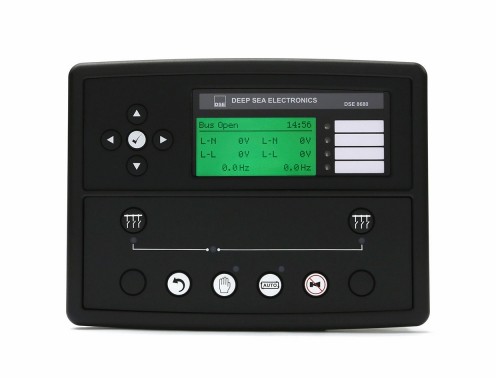

Up to 2 8680’s are supported when one to fourteen 8×60’s are in the system.
This provides a fully integrated standalone solution without the need for an external PLC.
Configurable inputs/outputs (11/8).
Provides multiple installation options.
Remote communications (RS232, RS485 x2, Ethernet).
Provides secure and simple off site monitoring. All ports are continuously active.
Configurable event log (250).
Provides access to historical alarms and operational status.
Integral PLC editor.
Ensures additional applications are easily integrated into the system.
Data logging (USB Memory Stick).
Provides current and historical status information.
DSE Configuration Suite PC Software.
Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
Compatible with DSE55xx, 75xx and 86xx control modules.
Provides flexibility for use within existing and new systems.
Specification
DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
MAXIMUM OPERATING CURRENT
150 mA at 12 V, 80 mA at 24 V
MAXIMUM STANDBY CURRENT
50 mA at 12 V, 30 mA at 24 V
BUS 1 AND BUS 2
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS
OUTPUTS C & D
8 A at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage
